| 最大径向力 | Maximum radial force | 6700(N) |
| 最大轴向力 | Maximum axial force | 4300(N) |
| 操作温度 | Operaring temp | -10℃~+90℃ |
| 平均寿命 | Average lifetime | 15000(s1) 30000(s5) (hr) |
| 噪音 | Noise | ≤63(DB) |
| 润滑油 | Lubrication | 合成润滑脂 |
| 防护等级 | Protection class | IP65 |
| 安装方式 | Mounting position | 任意方向 |

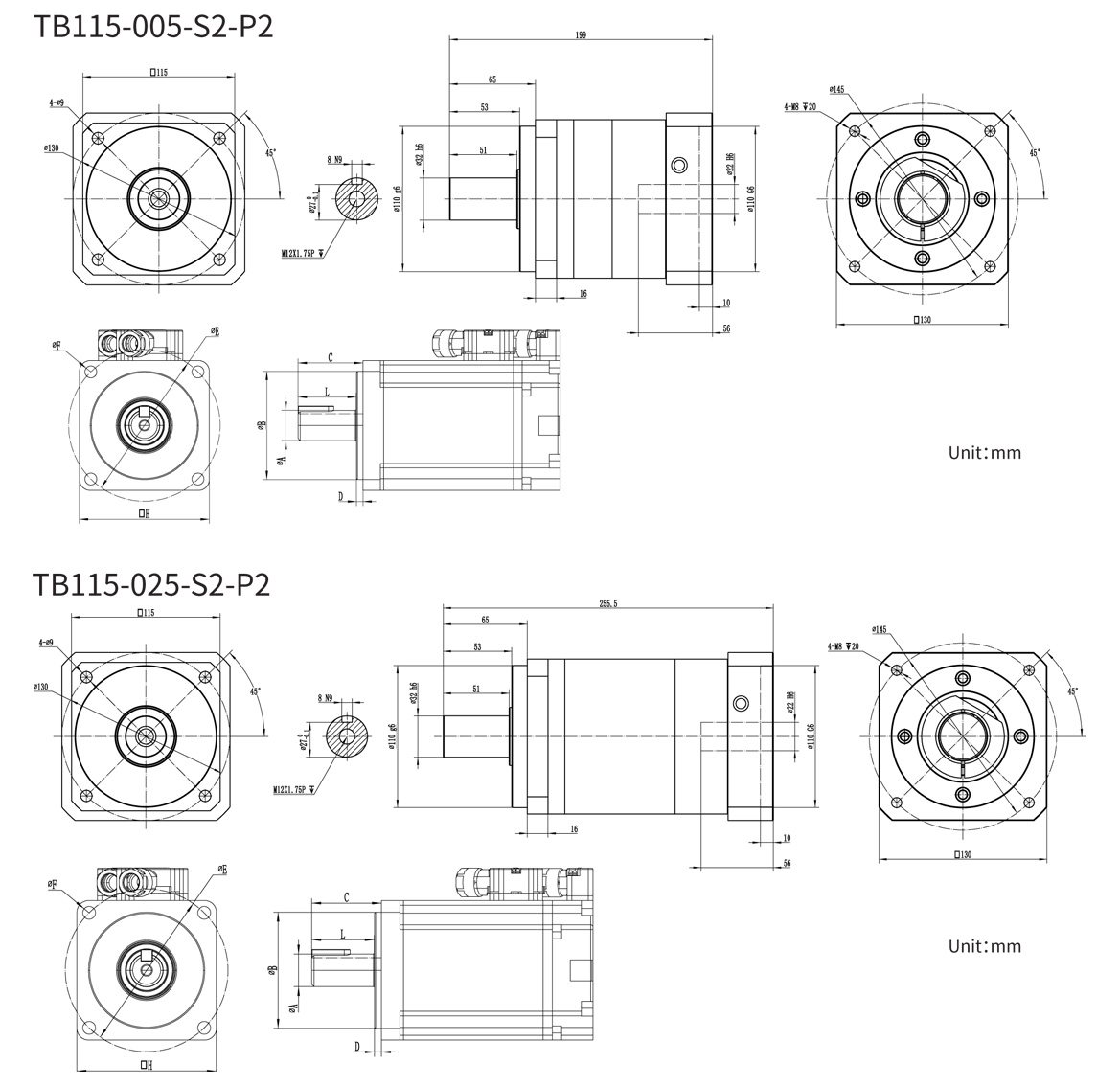

| 尺寸 Dimennsion | TB115 | |||
| 1-stage | 2-stage | |||
| 外径 Diameter | D1 | 130 | ||
| D2 | 9 | |||
| D3 | 152 | |||
| D4 | 110 | |||
| D6 | 32 | |||
| D7 | M12X1.75P | |||
| 长度 Length | L1 | 115 | ||
| L2 | 199 | 255.5 | ||
| L3 | 65 | |||
| L4 | 12 | |||
| L5 | 2 | |||
| L6 | 28 | |||
| L7 | 10 | |||
| L8 | 40 | |||
| 宽 Width | W1 | H9 | 10 | |
| 高 Height | H1 | 35 | ||
| 接入口尺寸 Interface size | C1 | 115 | ||
| C2 | 130 | |||
| C3 | 110 | |||
| C4 | M8X1.25P | |||
| C5 | ＜32 | |||
| C6 | 53 | |||
| C7 | 13 | |||
| C8 | 5 | |||
| C9 | 19.5 | |||
1.最大加速力矩（T2B)＝0.6x急停扭矩(T2not) ( Maximum acceleration torque (T2B) = 0.6x emergency stop torque (T2not))
2.噪音值会依比数不同而增加,此数据以10比为准,距減速机1M位置测量.*TB042为8比
3.使用寿命为低于额定输入转数及额定输出转速之操作状況下寿命.
*本公司保有修改尺寸的权利。所有减速机尺寸以画面确认为准。
| 性能表 SPECIFICATION | ||||
| 性能参数（SPEC) | 段数 Stage | 减速比 Ratio | TB115 | |
| 额定输出扭矩 Rate output torque T2n(N-M) | 1 | 3 | 187 | |
| 4 | 261 | |||
| 5 | 311 | |||
| 7（8）* | 277 | |||
| 10 | 242 | |||
| 2 | 15 | 187 | ||
| 20 | 261 | |||
| 25 | 311 | |||
| 30 | 187 | |||
| 35 | 311 | |||
| 40 | 261 | |||
| 50 | 311 | |||
| 70 | 277 | |||
| 100 | 242 | |||
| 急停扭矩 Emergrncy Stop Torque T2not (N-M)(1) | 1，2 | 3~100 | 3倍额定输出扭矩 3 times the rated output torque | |
| 额定输入转速 Rate Input Speed n | rpm | 1，2 | 3~100 | 2000 |
| 最大输入转速 Max.Inptut Speed n | rpm | 1，2 | 3~100 | 4000 |
| 效率 Effciency | % | 1 | 3~100 | ≧97% |
| 2 | 15~100 | ≧95% | ||
| 规格 Standard | 段数 Stage | 减速比 Ratio | TB115 |
|---|---|---|---|
| 转动惯量 Mass Mom. of inertia.J(KG-CM^2) | 1 | 3 | 1.39 |
| 4 | 1.27 | ||
| 5 | 1.14 | ||
| 7（8）* | 1.01 | ||
| 10 | 0.89 | ||
| 2 | 15 | 1.14 | |
| 20 | 0.14 | ||
| 25 | 0.14 | ||
| 30 | 0.89 | ||
| 35 | 1.01 | ||
| 40 | 0.89 | ||
| 50 | 0.89 | ||
| 70 | 0.89 | ||
| 100 | 0.89 |
